Support Station Instructions for the Pivot Position

| February 2019

The Support Station offers an opportunity for providing hygiene care in an upright position. Important: User's weight must not exceed 250 lbs.

WARNING: To prevent falls or injury, do not adjust the height or angle of the trunk board with a client on it. Adult supervision is required at all times. The support strap is not a substitute for close caregiver supervision.

Click here for instructions for the Fixed Position.

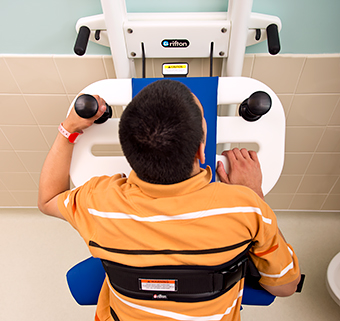

Support Station in the Pivot Position

supportstation4

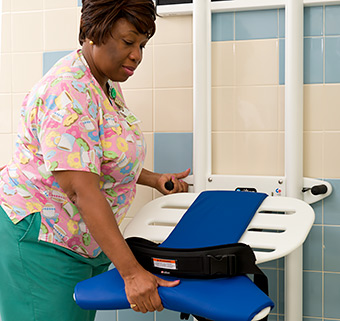

1. Adjust Trunk Board Height

Adjust the height of trunk board using the lower pair of black handles on the Support Station frame. The front edge of trunk board should be at mid-sternum level.
supportstation3

2. Adjust Trunk Board Angle

Adjust the trunk board angle using the upper handles. In order for the trunk board to pivot, it must be horizontal.

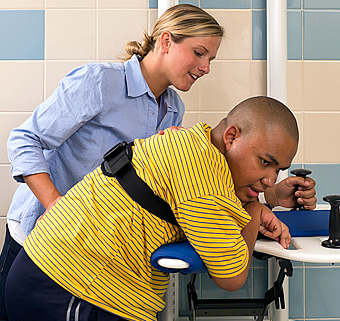

support station feature elbow curves

3. Transition to Support Station

Assist the user to a supported standing position. Secure him or her with the safety belt.
A young man in an orange striped shirt stands at a Rifton Support Station located in a bathroom.

4. Pivot to Toilet

Press down on the pivot latch handle, allowing the trunk board to rotate, and help the user pivot until they are in front of the toilet.

a line drawing of two hands adjusting the pivot latch handle on the Rifton Support Station.
A young man in an orange striped shirt stands at a Rifton Support Station located in a bathroom.

5. Transition to Toilet

Adjust clothing, then release the safety belt and assist the user to a seated position on the toilet.

Review these further available resources

Support Station Video

User Manual

For further instructions and warnings please refer to the product manual.



Topics
Adaptive Hygiene and Toileting
Article Categories
How To’s

You may also be interested in ...

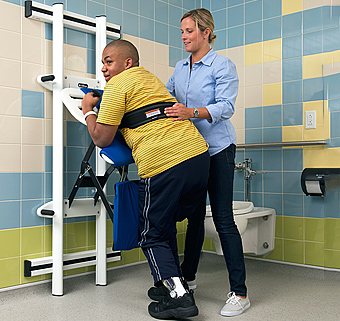

support station feature upright positioning
Article
Improved Hygiene Care and Toileting
A Therapists Perspective Hygiene care—particularly horizontal diapering—for people with severe disabilities can be time-consuming and taxing for the caregiver especially if it involves the traditional changing-table transfers.…
support station feature upright positioning 2
Article
Benefits of the Rifton Support Station
The Rifton Support Station enables diapering, toileting and hygiene care to occur in a comfortable, convenient and dignified standing position. Greater independence and dignity: Putting an end to infant-like horizontal hygiene can…

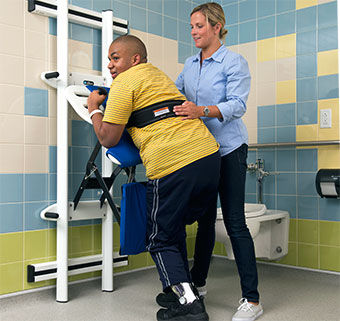

A therapists assists a young man in a sit to stand transfer for toileting at the Support Station.
